Product Features
1. Higher fouling resistance
Flat sheet membrane offers superior in fouling resistance compared with hollow fiber membrane
2. Simple system and operation
Flat sheet membrane don’t need a backwash system to operate reliably.
3. Easier maintenance
Simple module design with flat sheet membrane enables easier maintenance and cost savings.
4. Higher water permeability and high-quality effluent
Numerous and uniform small pores enable higher quality of treated water and high fouling
| Item | KH-MBRP-150-PTFE | KH-MBRP-80-PTFE |
| Membrane Area(M2) | 1.5 | 0.8 |
| Width*Height*thickness | 510x1750x7mm | 490x1000x7mm |
| Weight | 4.5kgs | 2.5kgs |
| Membrane material | PVDF/PTFE,ABS | PVDF/PTFE,ABS |
| Micro pore size | 0.1μm | 0.1μm |
| Turbidity of treated water | <1NTU | <1NTU |
| Suspend solid | <1mg/L | <1mg/L |
| Temperature | 5-40℃ | 5-40℃ |
| PH range | 3~12 | 3~12 |
| Water flux | 15~30LMH | 15~30LMH |

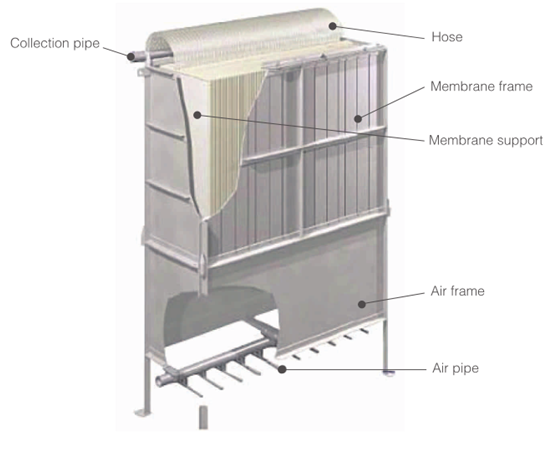

Structure of Flat Sheet MBR Unit
Application Field
Municipal water treatment
Drinking water treatment
Domestic wastewater treatment
Industrial wastewater treatment
Sewage treatment and reuse
High concentration organic wastewater treatment
Conventional surface water/groundwater treatment

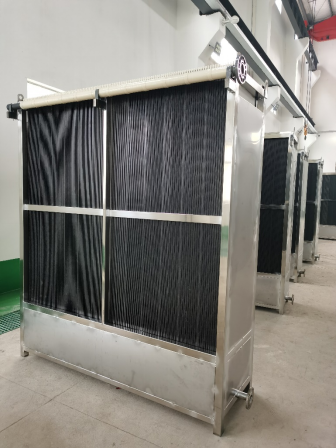

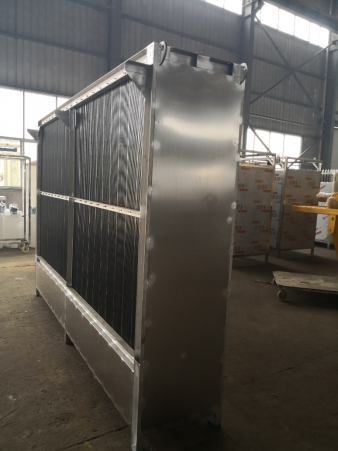

Specification of Typical MBR units with Flat sheet modules
Models | KH-MBRMDP80×50 | KH-MBRMDP80×80 | KH-MBRMDP80×100 | KH-MBRMDP80×120 |
Treating Capacity | 12-16 (m3/d) | 20-25 (m3/d) | 25-32 (m3/d) | 30-40 (m3/d) |
Quantity of membrane modules (pcs.) | 50 | 80 | 100 | 120 |
Membrane effective area (m²) | 40 | 64 | 80 | 96 |
Size (LxWxH)(mm) | 876×600×1500 | 1276×600×1500 | 1600×600×1500 | 1900×600×1500 |
Frame material | SUS304 | SUS304 | SUS304 | SUS304 |
Models | KH-MBRMDP150×60 | KH-MBRMDP150×80 | KH-MBRMDP150×100 | KH-MBRMDP150×120 |
Treating Capacity | 30-36 (m3/d) | 36-48 (m3/d) | 45-60 (m3/d) | 56-72 (m3/d) |
Quantity of membrane modules (pcs.) | 60 | 80 | 100 | 120 |
Effective Membrane area | 90 m² | 120 m² | 150 m² | 180 m² |
Size (LxWxH)(mm) | 1000×610×2300 | 1300×610×2300 | 1600×610×2300 | 1900×610×2300 |
Frame material | SUS304 | SUS304 | SUS304 | SUS304 |
Models | KH-MBRMDP150×150 | KH-MBRMDP150×160 | KH-MBRMDP150×180 | KH-MBRMDP150×200 |
Treating Capacity | 72-90 (m3/d) | 72-96 (m3/d) | 84-108 (m3/d) | 96-120 (m3/d) |
Quantity of membrane modules (pcs.) | 150 | 160 | 180 | 200 |
Effective Membrane area | 225 m² | 240 m² | 270 m² | 300 m² |
Size (LxWxH)(mm) | 2378×610×2300 | 2526×610×2300 | 2823×610×2300 | 3120×610×2300 |
Frame material | SUS304 | SUS304 | SUS304 | SUS304 |
