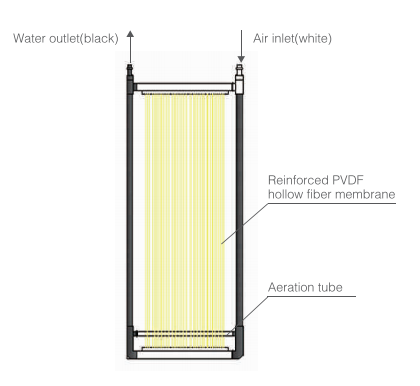

Structure of Products:
Product Features
1.Higher Strength
Our reinforced hollow fiber membrane is made of PVDF. It is reinfoced by PET braided hose tubes. The tensile strength of a single fiber is larger than 250N. The higher strength can prevent membrane capillaries from membrane breakage effectively.
2.Better Fouling Resistant
Our membrane is permanent hydrophilicity. Our structure of design can enhances the jitters of filament and the scrubbing of membrane surface.
3.Larger Water Flux
The membrane is formed by c-TIPS which can reduce the pressure of trans-membrane by higher membrane porosity.
4.Longer operation life
PVDF molecules have high structural regularity, the polymer chains are closely arrange, so they have strong anti-oxidation and chemical resistance.

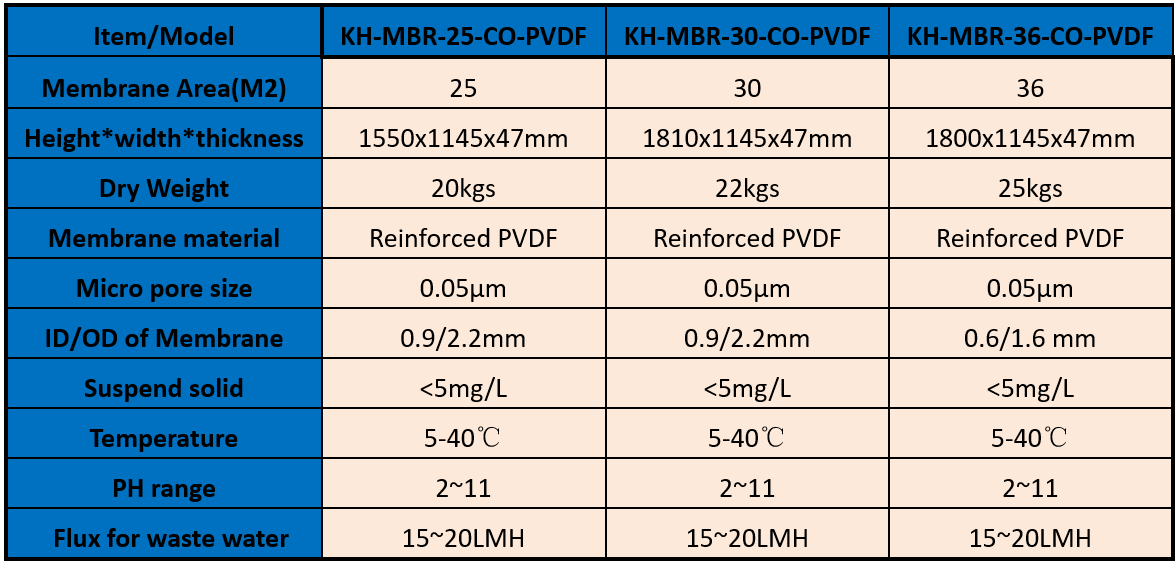

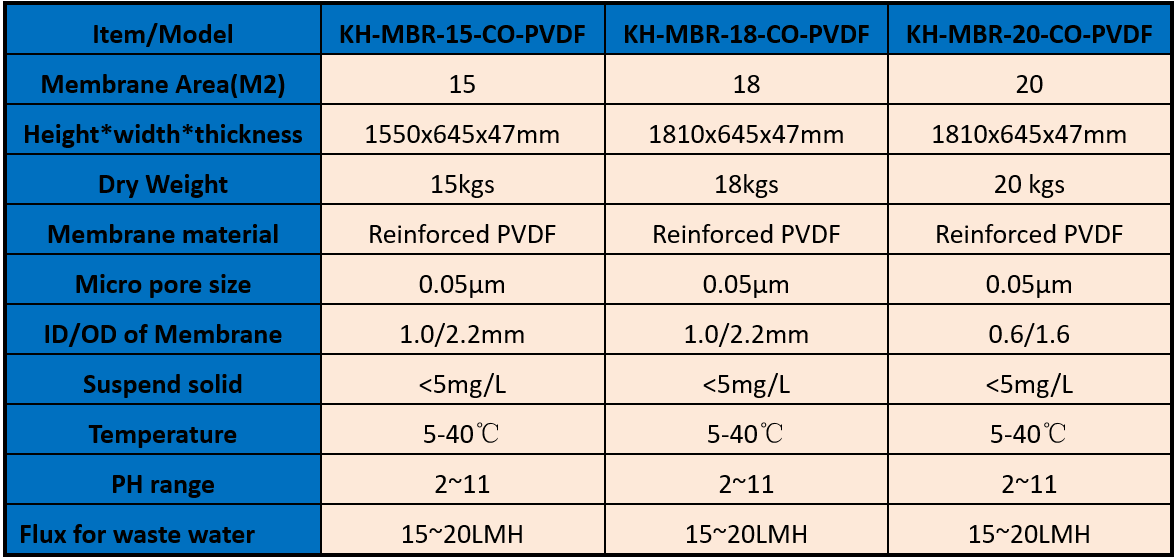

Technical Parameter of Membrane Module
Application Field
Municipal water treatment
Drinking water treatment
Domestic waste water treatment
Industrial waste water treatment
Sewage treatment and reuse
High concentration organic waste water treatment
Conventional surface water/groundwater treatment

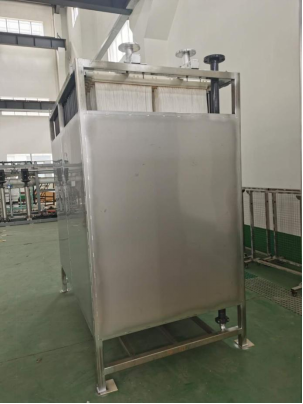

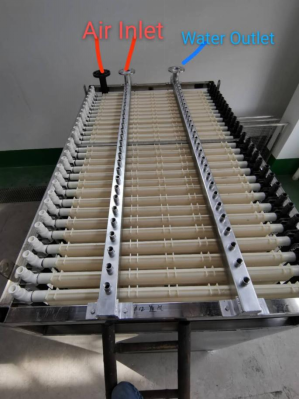

Typical MBR units for applying
Item/Model | KH-MBRMD-8×10-CO-PVDF | KH-MBRMD-8×20-CO-PVDF | KH-MBRMD-8×25-CO-PVDF |
Quantity of MBR modules | 10 pcs of MBR-8 modules | 20 pcs of MBR-8 modules | 25 pcs of MBR-8 modules |
Total Membrane Area(M2) | 80 | 160 | 200 |
Length | 876 mm | 1676 mm | 2100 mm |
Width | 740 mm | 740 mm | 750 mm |
Height | 1300 mm | 1300 mm | 1300 mm |
Estimated Weight | 120 kgs | 240 kgs | 300 kgs |
Item/Model | KH-MBRMD-12×10-CO-PVDF | KH-MBRMD-12×20-CO-PVDF | KH-MBRMD-12×25-CO-PVDF |
Quantity of MBR modules | 10 pcs of MBR-12 modules | 20pcs MBR-12 modules | 25pcs MBR-12 modules |
Total Membrane Area(M2) | 120 | 240 | 300 |
Length | 876 mm | 1676 mm | 2100mm |
Width | 740 mm | 740 mm | 750 mm |
Height | 1800 mm | 1800 mm | 1800 mm |
Estimated Weight | 180 kgs | 360 kgs | 450 kgs |
Item/Model | KH-MBRMD-25×20-CO-PVDF | KH-MBRMD-25×25-CO-PVDF | KH-MBRMD-25×30-CO-PVDF |
Quantity of MBR modules | 20 pcs of MBR-25 modules | 25pcs MBR-25 modules | 30 pcs MBR-25 modules |
Total Membrane Area(M2) | 500 | 625 | 750 |
Length | 1550 mm | 1875 mm | 2200 mm |
Width | 1255mm | 1255 mm | 1255 mm |
Height | 2000 mm | 2000 mm | 2000 mm |
Estimated Weight | 750 kgs | 940 kgs | 1125 kgs |
KH-MBRMD-25×40-CO-PVDF | KH-MBRMD-30×25-CO-PVDF | KH-MBRMD-30×30-CO-PVDF | |
Quantity of MBR modules | 40 pcs of MBR-25 modules | 25pcs MBR-30 modules | 30 pcs MBR-30 modules |
Total Membrane Area(M2) | 1000 | 750 | 900 |
Length | 2850 mm | 1875 mm | 2200 mm |
Width | 1255mm | 1255 mm | 1255 mm |
Height | 2000 mm | 2200 mm | 2200 mm |
Estimated Weight | 1500 kgs | 1100 kgs | 1350 kgs |
KH-MBRMD-30×40-CO-PVDF | KH-MBRMD-30×45-CO-PVDF | KH-MBRMD-30×50-CO-PVDF | |
Quantity of MBR modules | 40 pcs of MBR-30 modules | 45 pcs MBR-30 modules | 50 pcs MBR-30 modules |
Total Membrane Area(M2) | 1200 | 1350 | 1500 |
Length | 2850 mm | 3175 mm | 3500 mm |
Width | 1255mm | 1255 mm | 1255 mm |
Height | 2200 mm | 2200 mm | 2200 mm |
Estimated Weight | 1680 kgs | 1800 kgs | 2000 kgs |
Item/Model | KH-MBRMD-35×40-CO-PVDF | KH-MBRMD-35×50-CO-PVDF | KH-MBRMD-35×60-CO-PVDF |
Quantity of MBR modules | 40 pcs of MBR-35 modules | 50 pcs MBR-35 modules | 60 pcs MBR-35 modules |
Total Membrane Area(M2) | 1400 | 1750 | 2100 |
Length | 1920 mm | 2370 mm | 2820 mm |
Width | 1270 mm | 1270 mm | 1270 mm |
Height | 2300 mm | 2300 mm | 2300 mm |
Estimated Weight | 1900 kgs | 2300 kgs | 2750 kgs |
