UF Membrane with CPP material

Size  and    Specification

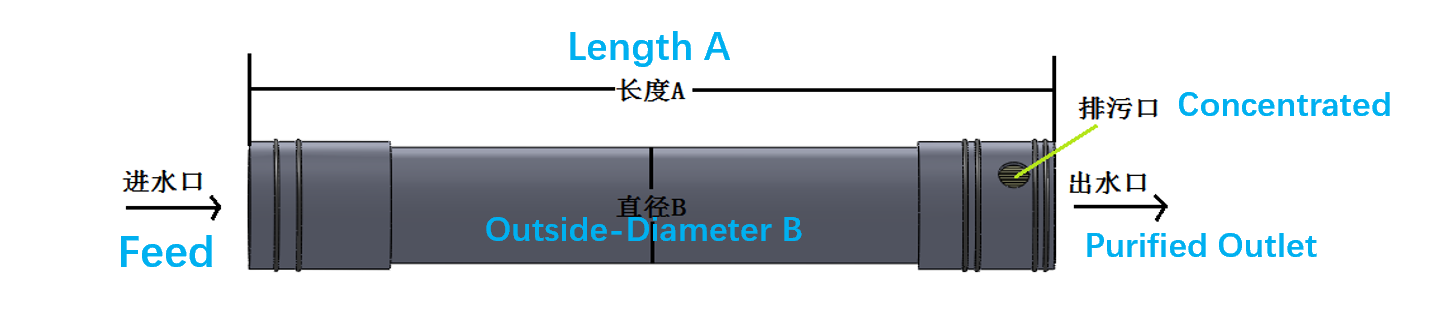

Length A

                    1054 mm

Outside Diameter B

                    Φ160mm

Membrane Material

PolyPropylene(CPP)

Pore Size

        0  1 um

Membrane Area

                      48 m2

Flow rate for purified water

              ≥3000 L/H(0.2Mpa, 25℃)

Turbidity of purified

                                  ≤.0.2 NTU

PH

     2-13

Temperature

     5-45 ℃

Oil concentration of the purified

             ≤ 5  mg/l

SS of the purified water

           ≤ 10 mg/l

Maximum Pressue

        ≤0.30 MPa

Typical        Process      Conditions

Feed Pressure

        0.15 MPa

Pressure for backwashing

         ≤  0.25 MPa

Transmembrane pressure

      ≤0.10MPa

Flowing rate of feed water

      1500 - 2000 L/H

Flowing rate of purified

300-400 L/H

Backwashing Period

  Once per day

Backwashing time

5-10 mins per time

Chemical Cleaning

0.5-1% Sodium hydroxide solution+ 100ppm Sodium Hypochlorite
